63-200mm PVC Double Wall Corrufated Pipe Machine , PE PVC Double Wall Corrugated Pipe Extrusion Line
Quick detial of corrugated pipe machine:
1. Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion.
2. HDPE Double Wall Corrugated Pipe Machine/Extrusion Line with various diameter and wall thickness, from 16-800mm.
Description of double wall corrugated pipe machine:
1. The plastic double wall corrugated pipe machine main composed of outer wall extruder, inner wall extruder, extrusion mold, corrugated forming machine, cooling unit, cutter, stacker.
2. Double wall corrugated pipe is mature product which has the advantage of low weight, low cost,
anti-corrosion,good ring stiffness and flexibility.
3. Extruder:Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PVC powder, PP powder, etc. Provide suitable extruder for different customer requirements.
4. Die Head and Calibration sleeve.
Both outer layer and inner layer are extruded inside die head. Each material flow channel inside die head is placed evenly. Each channel is after heat treatment and mirrorpolishing to ensure material flow smoothly. Also die head provides compressed air between both layer.Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe roundness.

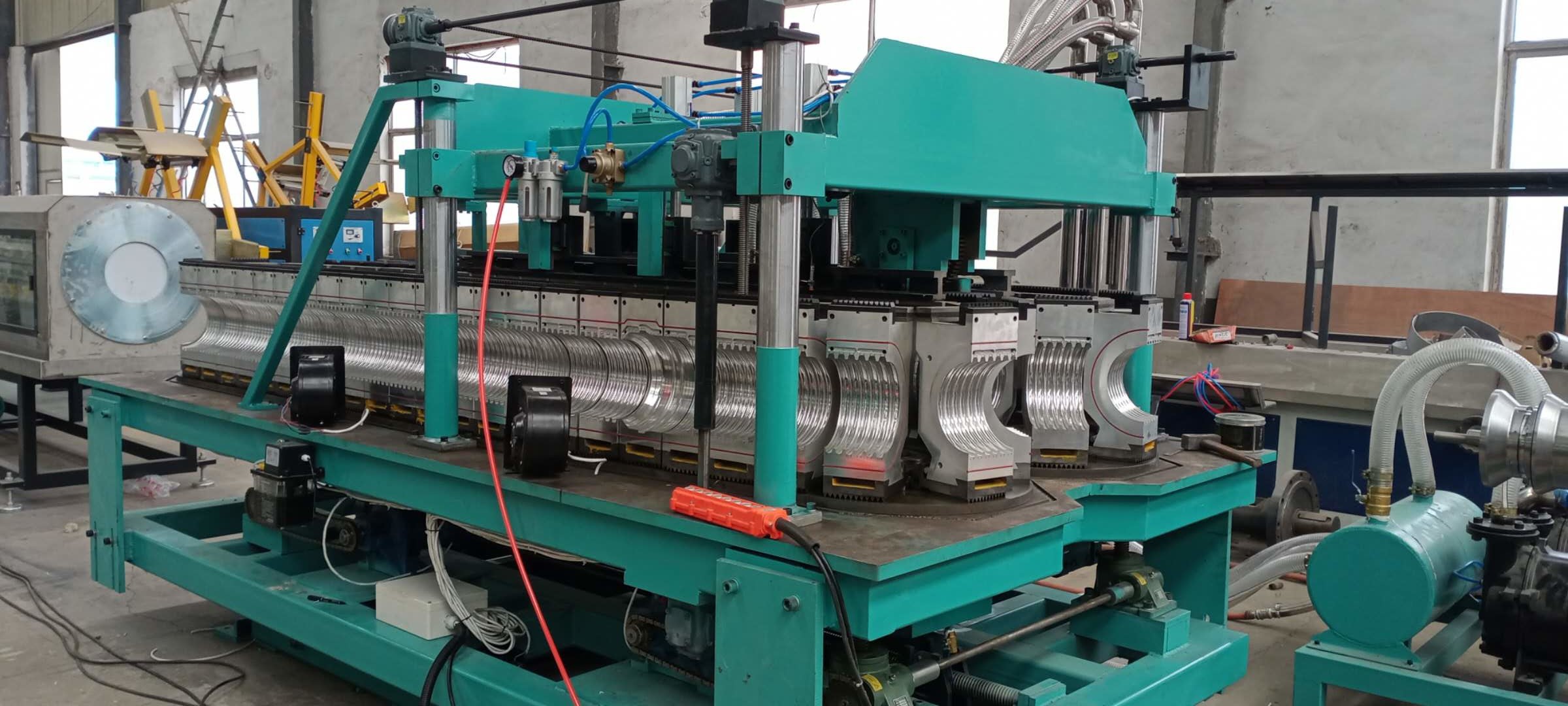

5. Corrugator. Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.
6. Cooling tank. Cooling tank is used to cool pipe .
7. Cutter. Cutter controlled by Siemens PLC, double knife cutter. Equipped with precise inspection device ensures the cutter accurately placing at the correct position of double wall corrugated pipe. Whole cutting process is accurate and fully automatic.
Technical parameters:
| Model | Pipe diameter, mm | PVC Output, kg/h | HDPE output, kg/h | Max. speed, m/min | Total power, kw |
| SFDWC-300 | 100-300 | 650 | 600 | 6.5 | 400 |
| SFDWC-500 | 150-500 | 1200 | 1000 | 6.5 | 580 |
| SFDWC-1000 | 200-1000 | 1300 | 1900 | 3.5 | 610 |
| SFDWC-1200 | 600-1200 | 1400 | 2000 | 1.5 | 800 |
| SFDWC-1500 | 1000-1500 | - | 2300 | 0.8 | 900 |
Usage:
1. Building industry : electrical conduit & sanitary duct
2. Automotive industry: Fuel line & wiring harness
3. Medical industry : breathing tubes
4. Civil works industry : double wall cable conduit
5. Agriculture: single and double wall drainage pipe

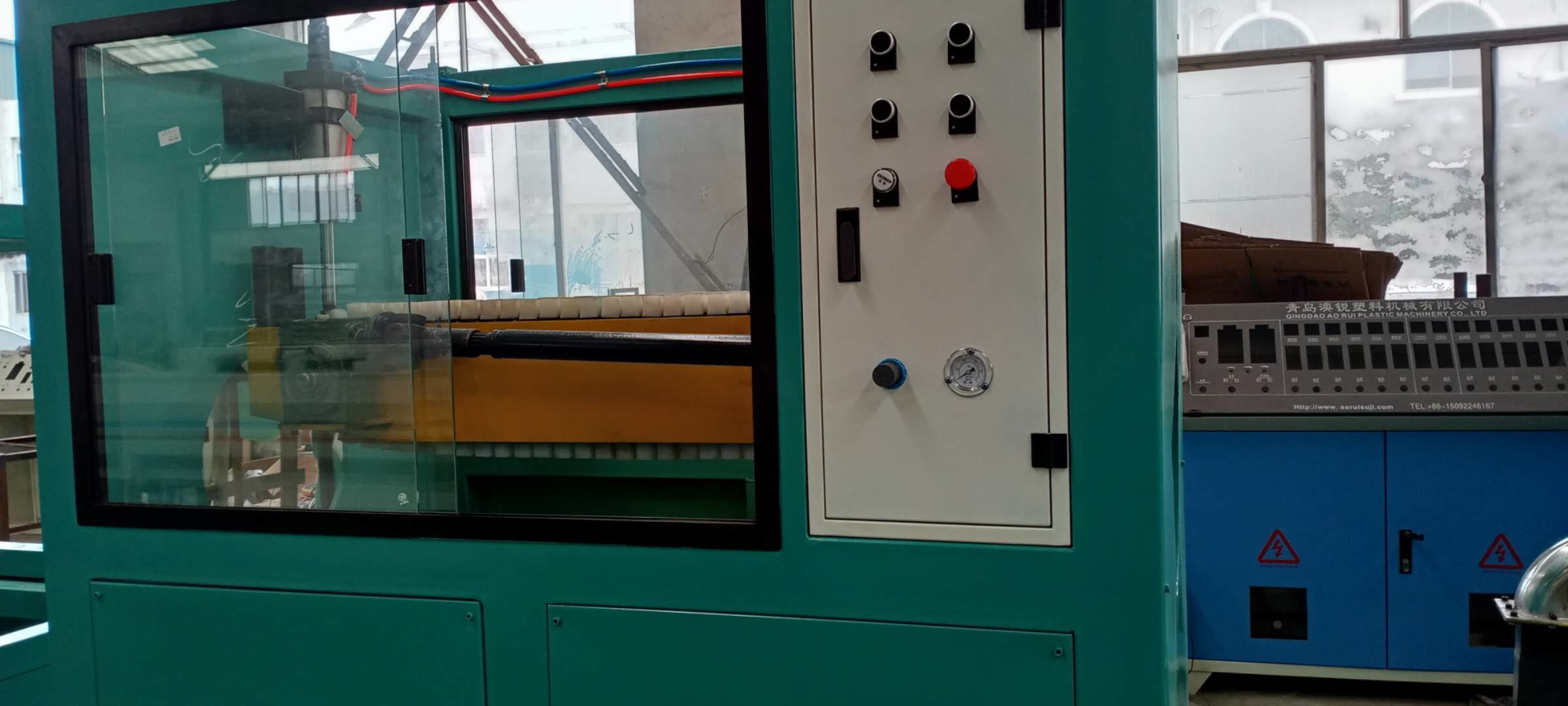

Machine display:
